Diffraction project datasets FM11876A_3b7c

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 65 2 2
Download all images (3.0 GB)

PDB website for 3B7C
PDB validation report for 3B7C

doi:10.18430/M33B7C

Project details

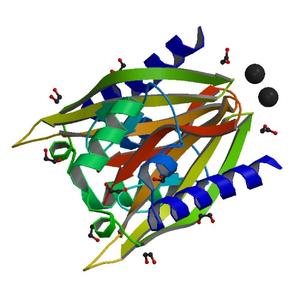

Title CRYSTAL STRUCTURE OF A NTF-2 LIKE PROTEIN OF UNKNOWN FUNCTION (SO_0125) FROM SHEWANELLA ONEIDENSIS MR-1 AT 1.70 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 66.19 x 66.19 x 126.07
Unit cell angles [°] 90.0, 90.0, 120.0

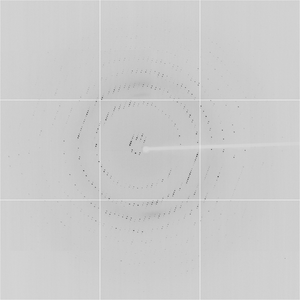

Dataset 61229_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 151.0
Wavelength [Å] 0.97970
Experiment Date 2007-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)

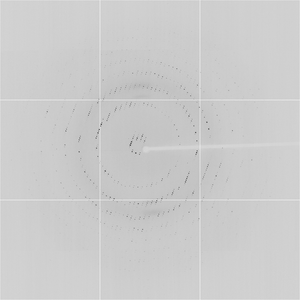

Dataset 61229_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 151.0
Wavelength [Å] 0.95370
Experiment Date 2007-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)

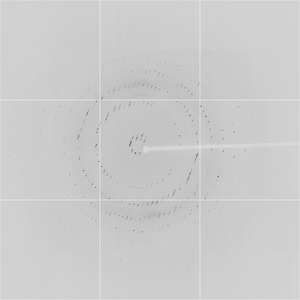

Dataset 61229_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 151.0
Wavelength [Å] 0.97950
Experiment Date 2007-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)
