Diffraction project datasets FM11866A_3bl4

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 21 21 21
Download all images (2.6 GB)

PDB website for 3BL4

doi:10.18430/M33BL4

Project details

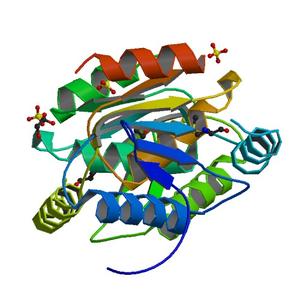

Title Crystal structure of a protein with unknown function (arth_0117) from arthrobacter sp. fb24 at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.25
Unit cell edges [Å] 35.37 x 56.13 x 106.33
Unit cell angles [°] 90.0, 90.0, 90.0

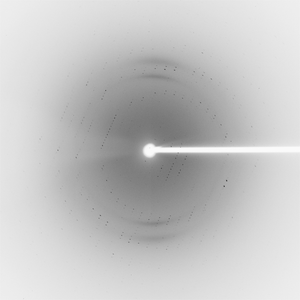

Dataset 67115_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 38.0
Wavelength [Å] 0.97966
Experiment Date 2007-11-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

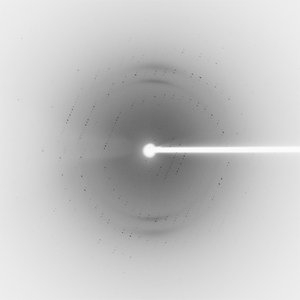

Dataset 67115_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 38.0
Wavelength [Å] 0.91837
Experiment Date 2007-11-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
