Diffraction project datasets FM11835A_3d9r

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: C 2 2 21
Download all images (3.4 GB)

PDB website for 3D9R
PDB validation report for 3D9R

doi:10.18430/M33D9R

Project details

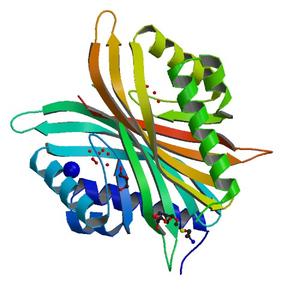

Title Crystal structure of ketosteroid isomerase-like protein (YP_049581.1) from ERWINIA CAROTOVORA ATROSEPTICA SCRI1043 at 2.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 116.00 x 135.42 x 139.16
Unit cell angles [°] 90.0, 90.0, 90.0

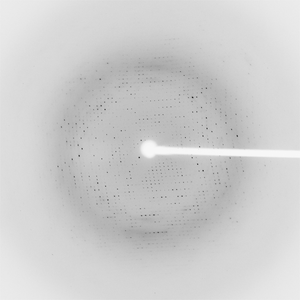

Dataset 80110_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 146.0
Wavelength [Å] 0.97932
Experiment Date 2008-03-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

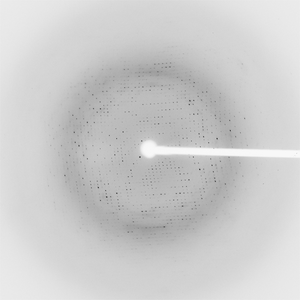

Dataset 80110_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 146.0
Wavelength [Å] 0.91837
Experiment Date 2008-03-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

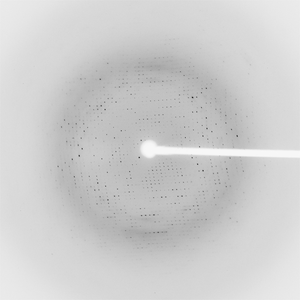

Dataset 80110_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 146.0
Wavelength [Å] 0.97879
Experiment Date 2008-03-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
