Diffraction project datasets FM11809A_3bdd

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 1 21 1
Download all images (2.0 GB)

PDB website for 3BDD

doi:10.18430/M33BDD

Project details

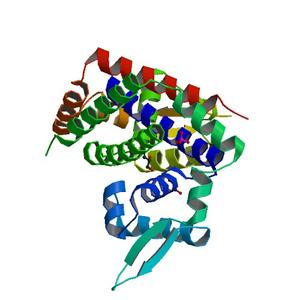

Title CRYSTAL STRUCTURE OF A PUTATIVE MULTIPLE ANTIBIOTIC-RESISTANCE REPRESSOR (SSU05_1136) FROM STREPTOCOCCUS SUIS 89/1591 AT 2.20 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.22 / 0.28
Unit cell edges [Å] 50.73 x 100.43 x 68.69
Unit cell angles [°] 90.0, 111.4, 90.0

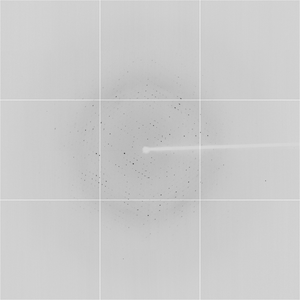

Dataset 59519_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 23.0
Wavelength [Å] 0.97980
Experiment Date 2007-08-30
Equipment 8.2.2 at ALS (Advanced Light Source)

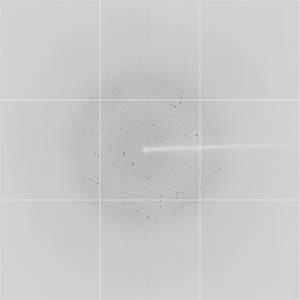

Dataset 59519_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 23.0
Wavelength [Å] 1.00000
Experiment Date 2007-08-30
Equipment 8.2.2 at ALS (Advanced Light Source)
