Diffraction project datasets FM11798A_2rgq

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 2
Download all images (2.1 GB)

PDB website for 2RGQ

doi:10.18430/M32RGQ

Project details

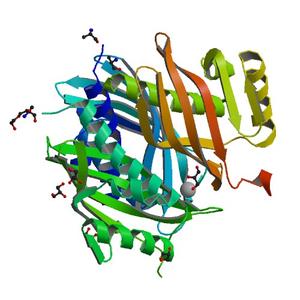

Title Crystal structure of a protein of unknown function with a cystatin-like fold (npun_r3134) from nostoc punctiforme pcc 73102 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 92.49 x 93.77 x 53.07
Unit cell angles [°] 90.0, 90.0, 90.0

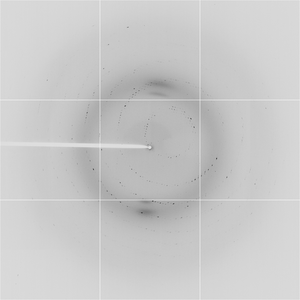

Dataset 60587_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 28.0
Wavelength [Å] 0.97960
Experiment Date 2007-09-15
Equipment 8.2.1 at ALS (Advanced Light Source)

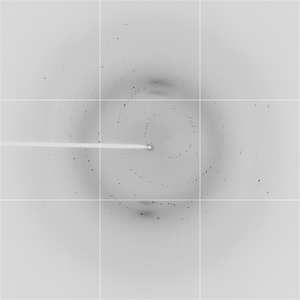

Dataset 60587_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 28.0
Wavelength [Å] 1.00000
Experiment Date 2007-09-15
Equipment 8.2.1 at ALS (Advanced Light Source)
