Diffraction project datasets FM11705A_3cnx
- Method: MAD
- Resolution: 2.1 Å
- Space group: P 21 21 2
PDB website for 3CNX
PDB validation report for 3CNX
doi:10.18430/M33CNX
Project details

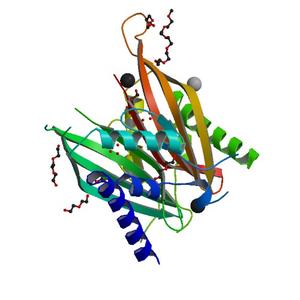

| Title | CRYSTAL STRUCTURE OF A PUTATIVE DEHYDRATASE FROM THE NTF2-LIKE FAMILY (SAV_4671) FROM STREPTOMYCES AVERMITILIS AT 2.10 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 103.00 x 128.75 x 44.38 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

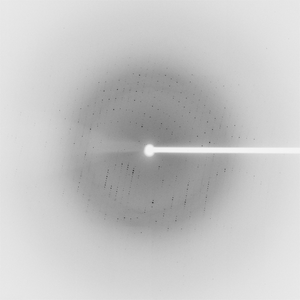

Dataset 73395_1_E1_###.mccd details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 351.0 |
| Wavelength [Å] | 0.97978 |
| Experiment Date | 2008-01-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

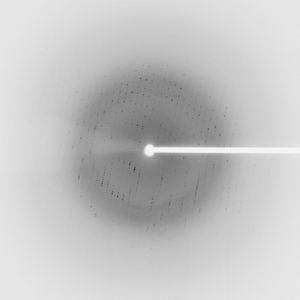

Dataset 73395_1_E2_###.mccd details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 351.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2008-01-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
