Diffraction project datasets FM11704A_3h4q

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 31 2 1
Download all images (3.8 GB)

PDB website for 3H4Q
PDB validation report for 3H4Q

doi:10.18430/M33H4Q

Project details

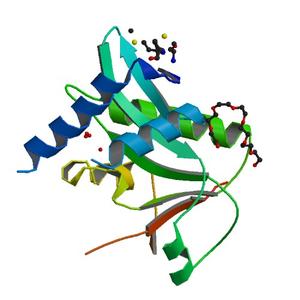

Title Crystal structure of putative acetyltransferase (NP_371943.1) from STAPHYLOCOCCUS AUREUS MU50 at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.25
Unit cell edges [Å] 84.49 x 84.49 x 69.68
Unit cell angles [°] 90.0, 90.0, 120.0

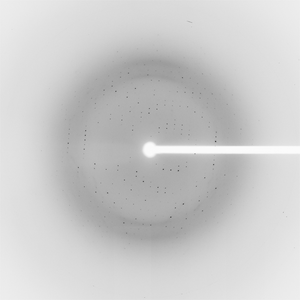

Dataset 107516_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 39.0
Wavelength [Å] 0.97964
Experiment Date 2009-01-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

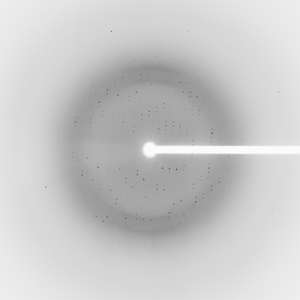

Dataset 107516_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 39.0
Wavelength [Å] 0.91837
Experiment Date 2009-01-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

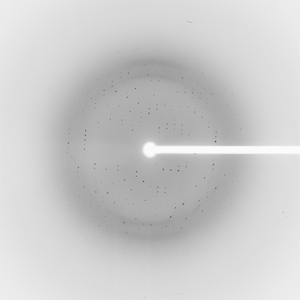

Dataset 107516_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 39.0
Wavelength [Å] 0.97949
Experiment Date 2009-01-17
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
