Diffraction project datasets FM11626A_3cjd
- Method: SAD
- Resolution: 1.79 Å
- Space group: P 1
PDB website for 3CJD
PDB validation report for 3CJD
doi:10.18430/M33CJD
Project details

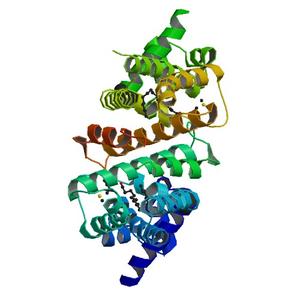

| Title | Crystal structure of putative TetR transcriptional regulator (YP_510936.1) from Jannaschia sp. CCS1 at 1.79 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.21 / 0.24 |
| Unit cell edges [Å] | 40.28 x 46.04 x 60.76 |
| Unit cell angles [°] | 99.2, 100.4, 104.8 |

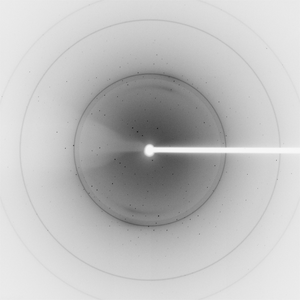

Dataset 72284_1_###.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 67.0 |
| Wavelength [Å] | 0.97961 |
| Experiment Date | 2008-01-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
