Diffraction project datasets FM11555A_3dtt
Project details
| Title |

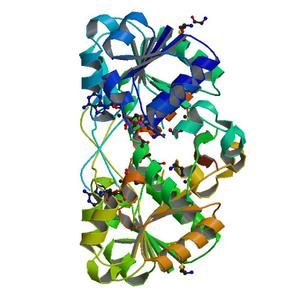

Crystal structure of a putative f420 dependent nadp-reductase (arth_0613) from arthrobacter sp. fb24 at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.20 |
| Unit cell edges [Å] |
40.97 x
47.05 x
61.12
|
| Unit cell angles [°] |
77.4,
73.2,
64.3
|

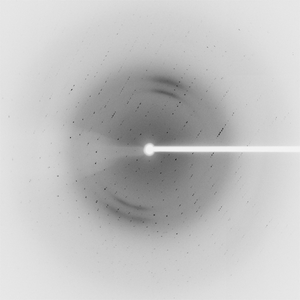

Dataset 88650_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
96.0 |
| Wavelength [Å] |
0.97966 |
| Experiment Date |
2008-06-26 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

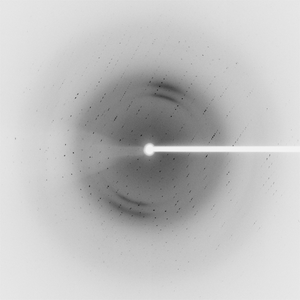

Dataset 88650_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
96.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2008-06-26 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

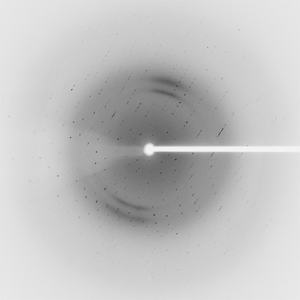

Dataset 88650_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
96.0 |
| Wavelength [Å] |
0.97951 |
| Experiment Date |
2008-06-26 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
