Diffraction project datasets FM11532A_4mud

  • Method: MAD
  • Resolution: 2.43 Å
  • Space group: P 1
Download all images (4.9 GB)

PDB website for 4MUD
PDB validation report for 4MUD

doi:10.18430/M34MUD

Project details

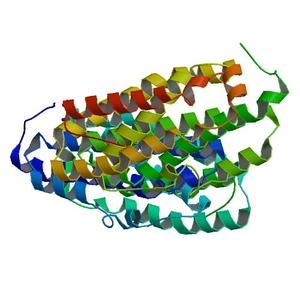

Title Crystal structure of a ring oxydation complex/ phenylacetic acid degradation-like protein (SSO1313) from Sulfolobus solfataricus P2 at 2.43 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 52.73 x 64.25 x 77.01
Unit cell angles [°] 80.3, 70.1, 86.4

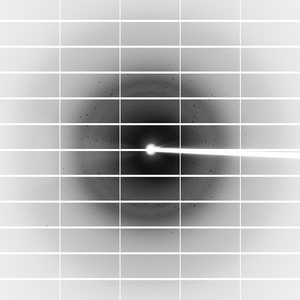

Dataset 137616_1_E1_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

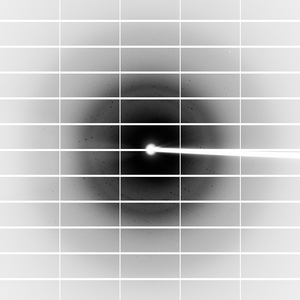

Dataset 137616_1_E2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

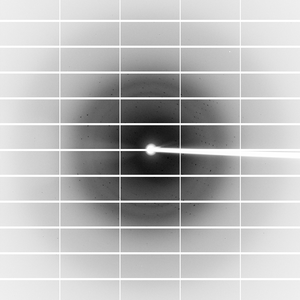

Dataset 137616_2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97855
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
