Diffraction project datasets FM11526A_3bfm
Project details
| Title |

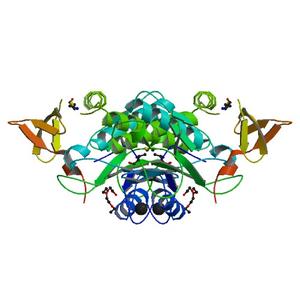

Crystal structure of a biotin protein ligase-like protein of unknown function (tm1040_0394) from silicibacter sp. tm1040 at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.18 / 0.23 |
| Unit cell edges [Å] |
86.76 x
36.56 x
71.00
|
| Unit cell angles [°] |
90.0,
99.3,
90.0
|

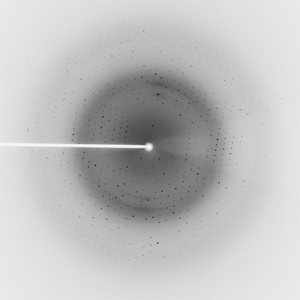

Dataset 63720_1_E1.#### details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.97953 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

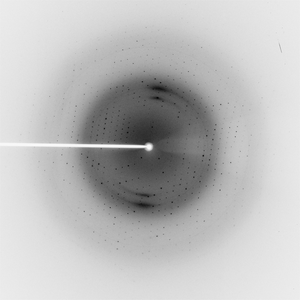

Dataset 63720_1_E2.#### details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.91840 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

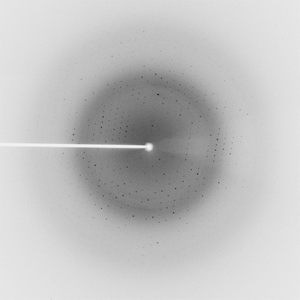

Dataset 63720_2.#### details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
230.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
21.0 |
| Wavelength [Å] |
0.97939 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
