Diffraction project datasets FM11521A_3cu2

  • Method: MAD
  • Resolution: 1.91 Å
  • Space group: P 31 2 1
Download all images (2.9 GB)

PDB website for 3CU2
PDB validation report for 3CU2

doi:10.18430/M33CU2

Project details

Title Crystal structure of ribulose-5-phosphate 3-epimerase (YP_718263.1) from Haemophilus somnus 129PT at 1.91 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 85.01 x 85.01 x 140.16
Unit cell angles [°] 90.0, 90.0, 120.0

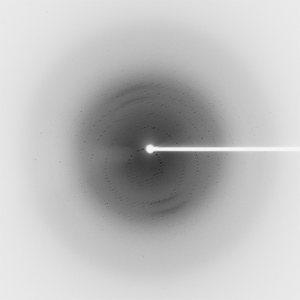

Dataset 76429_1_E1_###.mccd details

Number of frames 75 (1 - 75)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 175.0
Wavelength [Å] 0.97922
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

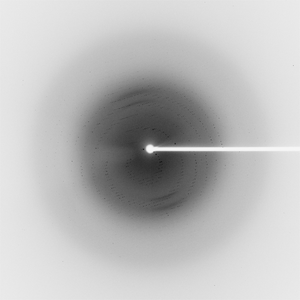

Dataset 76429_1_E2_###.mccd details

Number of frames 75 (1 - 75)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 175.0
Wavelength [Å] 0.91837
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 76429_2_###.mccd details

Number of frames 75 (1 - 75)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 175.0
Wavelength [Å] 0.97840
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
