Diffraction project datasets FM11503A_3b5p

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 1 21 1
Download all images (2.8 GB)

PDB website for 3B5P

doi:10.18430/M33B5P

Project details

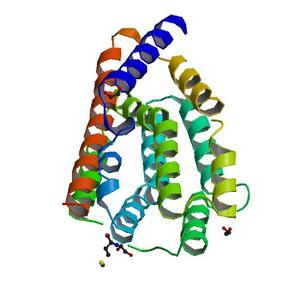

Title Crystal structure of a cadd-like protein of unknown function (npun_f6505) from nostoc punctiforme pcc 73102 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.23
Unit cell edges [Å] 38.67 x 78.51 x 45.58
Unit cell angles [°] 90.0, 112.3, 90.0

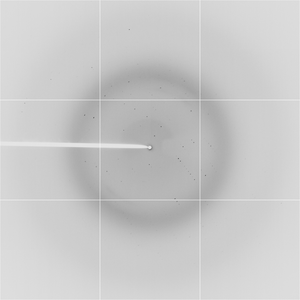

Dataset 61016_1_E1_###.img details

Number of frames 145 (1 - 145)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 0.97970
Experiment Date 2007-09-14
Equipment 8.2.1 at ALS (Advanced Light Source)

Dataset 61016_1_E2_###.img details

Number of frames 145 (1 - 145)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 1.00000
Experiment Date 2007-09-14
Equipment 8.2.1 at ALS (Advanced Light Source)

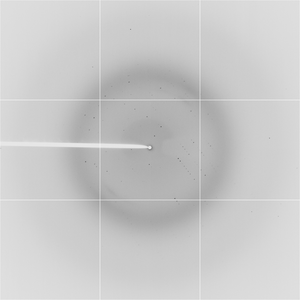

Dataset 61016_2_###.img details

Number of frames 145 (1 - 145)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 0.97960
Experiment Date 2007-09-14
Equipment 8.2.1 at ALS (Advanced Light Source)
