Diffraction project datasets FL11227A_2qtd

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 21 21 21
Download all images (4.9 GB)

PDB website for 2QTD

doi:10.18430/M32QTD

Project details

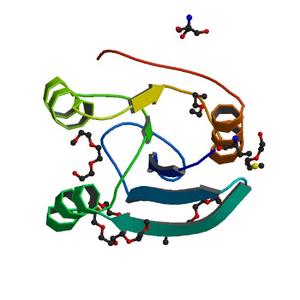

Title Crystal structure of a putative dinitrogenase (mj0327) from methanocaldococcus jannaschii dsm at 1.70 A resolution
Authors Jaudzems, K., Geralt, M., Serrano, P., Mohanty, B., Horst, R., Pedrini, B., Elsliger, M.A., Wilson, I.A., Wuthrich, K.
R / Rfree 0.20 / 0.26
Unit cell edges [Å] 35.86 x 54.12 x 56.53
Unit cell angles [°] 90.0, 90.0, 90.0

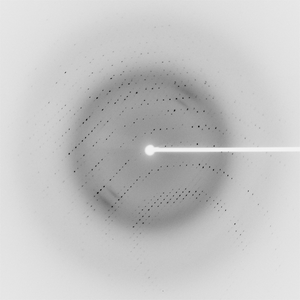

Dataset 55006_1_E1_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 345.0
Wavelength [Å] 0.97916
Experiment Date 2007-07-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

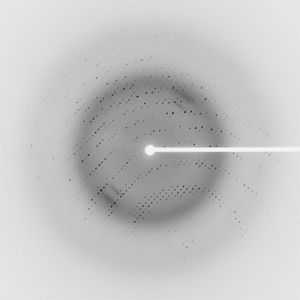

Dataset 55006_1_E2_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 345.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

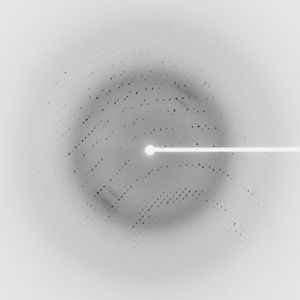

Dataset 55006_2_###.mccd details

Number of frames 140 (1 - 140)
Distance [mm] 270.0
Oscillation width [°] 1.00
Phi [°] 345.0
Wavelength [Å] 0.97883
Experiment Date 2007-07-02
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
