Diffraction project datasets FL11216A_2r7h

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: C 1 2 1
Download all images (4.9 GB)

PDB website for 2R7H
PDB validation report for 2R7H

doi:10.18430/M32R7H

Project details

Title CRYSTAL STRUCTURE OF A putative acetyltransferase of the GNAT family (DDE_3044) FROM DESULFOVIBRIO DESULFURICANS SUBSP. AT 1.85 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 71.75 x 47.35 x 108.12
Unit cell angles [°] 90.0, 97.0, 90.0

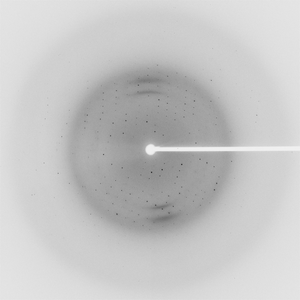

Dataset 55056_1_E1_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 93.0
Wavelength [Å] 0.97951
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

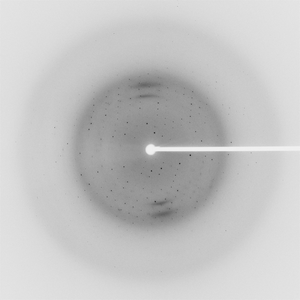

Dataset 55056_1_E2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 93.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

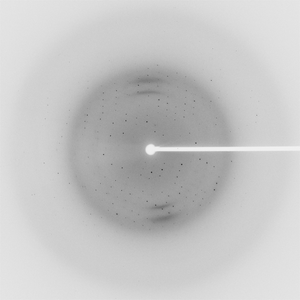

Dataset 55056_2_###.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 93.0
Wavelength [Å] 0.97926
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
