Diffraction project datasets FL11080A_2r1i

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: C 1 2 1
Download all images (5.3 GB)

PDB website for 2R1I
PDB validation report for 2R1I

doi:10.18430/M32R1I

Project details

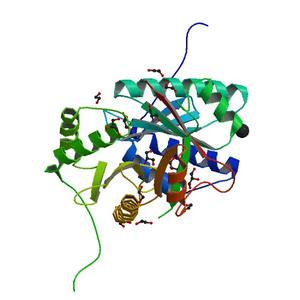

Title Crystal structure of putative acetyltransferase (YP_831484.1) from Arthrobacter sp. FB24 at 1.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 144.10 x 40.26 x 81.27
Unit cell angles [°] 90.0, 123.4, 90.0

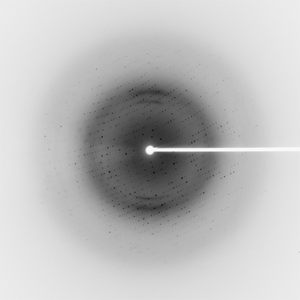

Dataset 55408_1_E1_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 105.0
Wavelength [Å] 0.97929
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

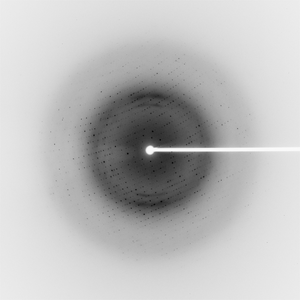

Dataset 55408_1_E2_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 105.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

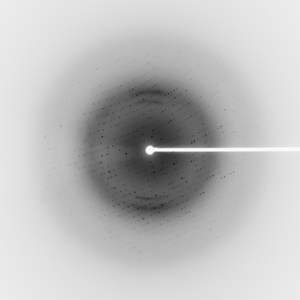

Dataset 55408_2_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 230.0
Oscillation width [°] 1.00
Phi [°] 105.0
Wavelength [Å] 0.97905
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
