Diffraction project datasets FL10974A_2r01

  • Method: MAD
  • Resolution: 1.15 Å
  • Space group: P 21 21 2
Download all images (3.1 GB)

PDB website for 2R01
PDB validation report for 2R01

doi:10.18430/M32R01

Project details

Title Crystal structure of a putative fmn-dependent nitroreductase (ct0345) from chlorobium tepidum tls at 1.15 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 60.03 x 64.72 x 48.01
Unit cell angles [°] 90.0, 90.0, 90.0

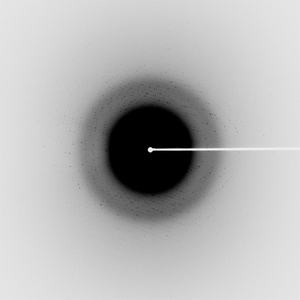

Dataset 56319_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 140.0
Oscillation width [°] 1.00
Phi [°] 171.0
Wavelength [Å] 0.97949
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

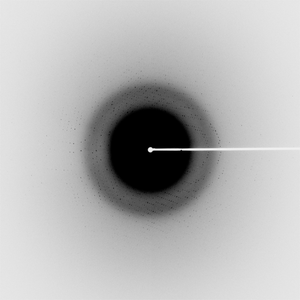

Dataset 56319_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 140.0
Oscillation width [°] 1.00
Phi [°] 171.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

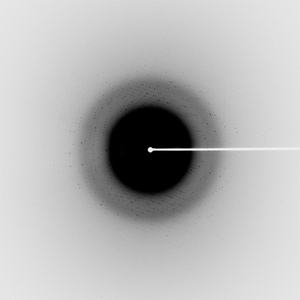

Dataset 56319_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 140.0
Oscillation width [°] 1.00
Phi [°] 171.0
Wavelength [Å] 0.97922
Experiment Date 2007-07-19
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
