Diffraction project datasets FL10768A_2raf

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: C 2 2 21
Download all images (3.9 GB)

PDB website for 2RAF
PDB validation report for 2RAF

doi:10.18430/M32RAF

Project details

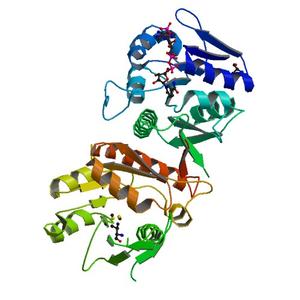

Title Crystal structure of putative dinucleotide-binding oxidoreductase (NP_786167.1) from Lactobacillus plantarum at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 53.33 x 152.57 x 140.07
Unit cell angles [°] 90.0, 90.0, 90.0

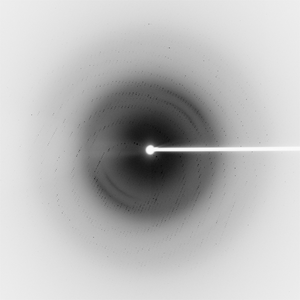

Dataset 57037_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.97917
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

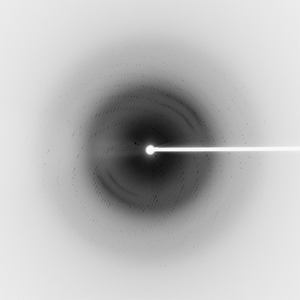

Dataset 57037_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

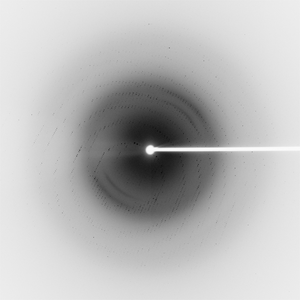

Dataset 57037_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 85.0
Wavelength [Å] 0.97886
Experiment Date 2007-07-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
