Diffraction project datasets FL10727A_3c1a
Project details
| Title |

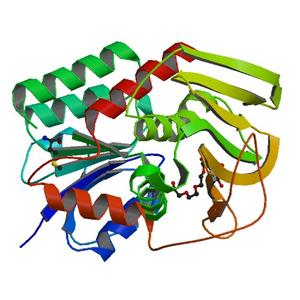

Crystal structure of a putative oxidoreductase (ZP_00056571.1) from Magnetospirillum magnetotacticum MS-1 at 1.85 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.21 / 0.26 |
| Unit cell edges [Å] |
94.66 x
86.36 x
87.91
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

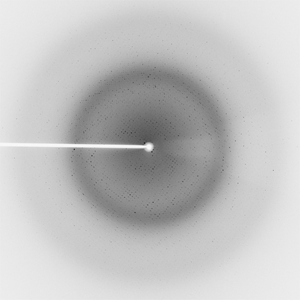

Dataset 66375_1_E1.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
292.0 |
| Wavelength [Å] |
0.97953 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

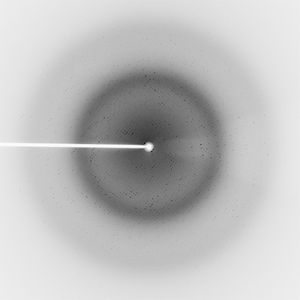

Dataset 66375_1_E2.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
292.0 |
| Wavelength [Å] |
0.91840 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
Dataset 66375_2.#### details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
292.0 |
| Wavelength [Å] |
0.97939 |
| Experiment Date |
2007-10-26 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
