Diffraction project datasets FK9784A_2pfw

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 21 21 21
Download all images (4.0 GB)

PDB website for 2PFW
PDB validation report for 2PFW

doi:10.18430/M32PFW

Project details

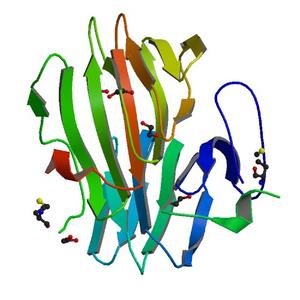

Title CRYSTAL STRUCTURE OF A RMLC-LIKE CUPIN (SFRI_3105) FROM SHEWANELLA FRIGIDIMARINA NCIMB 400 AT 1.90 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.26
Unit cell edges [Å] 58.50 x 73.14 x 73.13
Unit cell angles [°] 90.0, 90.0, 90.0

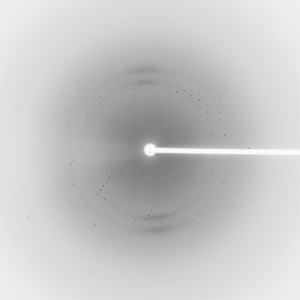

Dataset 39621_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97895
Experiment Date 2007-01-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

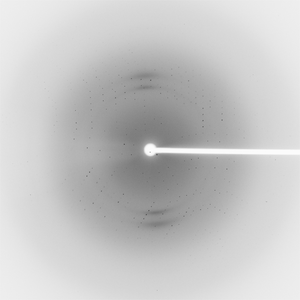

Dataset 39621_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Wavelength [Å] 0.91162
Experiment Date 2007-01-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

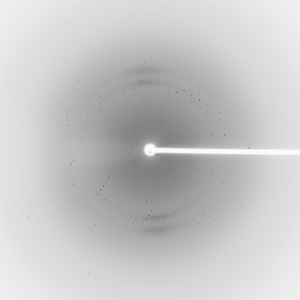

Dataset 39621_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97871
Experiment Date 2007-01-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
