Diffraction project datasets FK9452E_2otm

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: C 1 2 1
Download all images (7.3 GB)

PDB website for 2OTM
PDB validation report for 2OTM

doi:10.18430/M32OTM

Project details

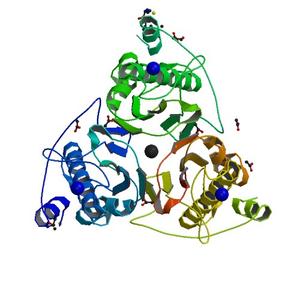

Title Crystal structure of a putative endoribonuclease (so_1960) from shewanella oneidensis mr-1 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 112.08 x 62.91 x 78.69
Unit cell angles [°] 90.0, 93.2, 90.0

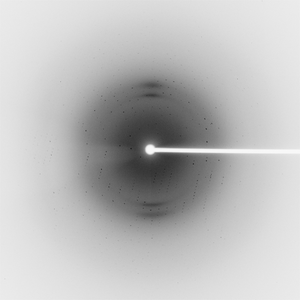

Dataset 39278_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 222.0
Wavelength [Å] 0.97931
Experiment Date 2007-01-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

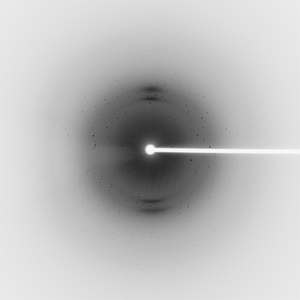

Dataset 39278_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 222.0
Wavelength [Å] 0.91837
Experiment Date 2007-01-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 39278_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 222.0
Wavelength [Å] 0.97885
Experiment Date 2007-01-31
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
