Diffraction project datasets FK8798A_2qww

  • Method: MAD
  • Resolution: 2.07 Å
  • Space group: P 1 21 1
Download all images (11.6 GB)

PDB website for 2QWW

doi:10.18430/M32QWW

Project details

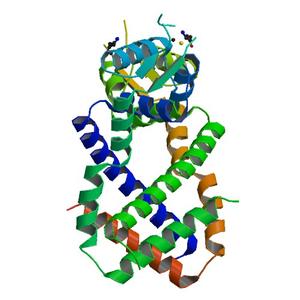

Title Crystal structure of multiple antibiotic-resistance repressor (MarR) (YP_013417.1) from Listeria monocytogenes 4b F2365 at 2.07 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.24 / 0.29
Unit cell edges [Å] 48.25 x 159.70 x 90.27
Unit cell angles [°] 90.0, 103.3, 90.0

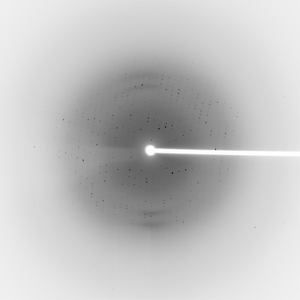

Dataset 44338_1_E1_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97939
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

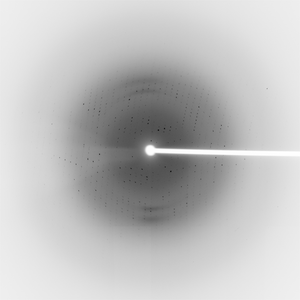

Dataset 44338_1_E2_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.91162
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

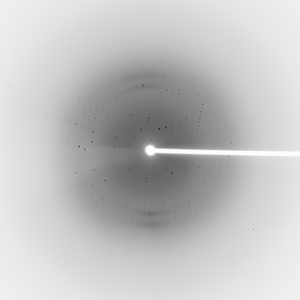

Dataset 44338_2_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97918
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

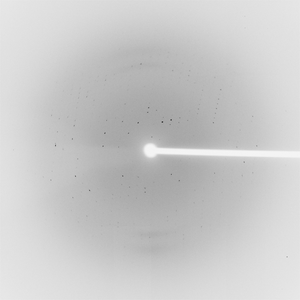

Dataset 44338_3_E1_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97939
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

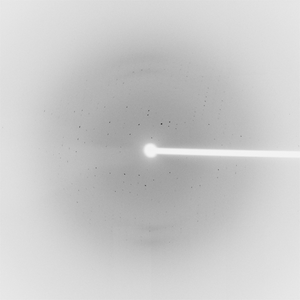

Dataset 44338_3_E2_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.91162
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

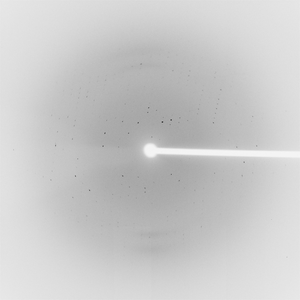

Dataset 44338_4_###.mccd details

Number of frames 130 (1 - 130)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97918
Experiment Date 2007-03-15
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
