Diffraction project datasets FK5955B_3ebr

  • Method: MAD
  • Resolution: 2.6 Å
  • Space group: P 42 2 2
Download all images (2.4 GB)

PDB website for 3EBR
PDB validation report for 3EBR

doi:10.18430/M33EBR

Project details

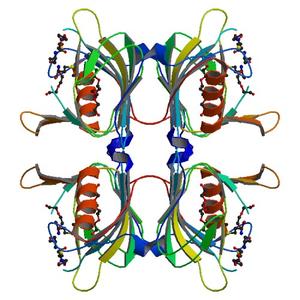

Title Crystal structure of an rmlc-like cupin protein (reut_a0381) from ralstonia eutropha jmp134 at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 91.16 x 91.16 x 48.75
Unit cell angles [°] 90.0, 90.0, 90.0

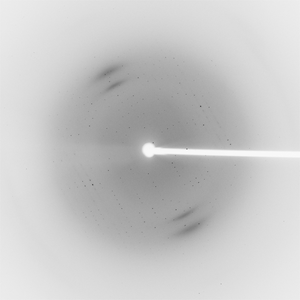

Dataset 67156_1_E1_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.97941
Experiment Date 2008-06-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

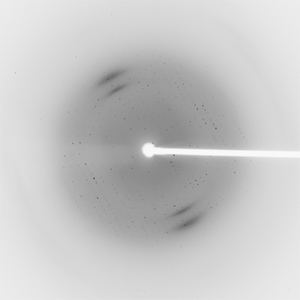

Dataset 67156_1_E2_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.91837
Experiment Date 2008-06-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 67156_2_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 14.0
Wavelength [Å] 0.97854
Experiment Date 2008-06-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
