Diffraction project datasets FK5749A_2pke
Project details
| Title |

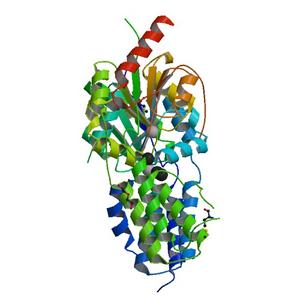

Crystal structure of haloacid delahogenase-like family hydrolase (NP_639141.1) from Xanthomonas campestris at 1.81 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.23 |
| Unit cell edges [Å] |
34.16 x
107.10 x
62.56
|
| Unit cell angles [°] |
90.0,
102.3,
90.0
|
Dataset 46035_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2007-02-04 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

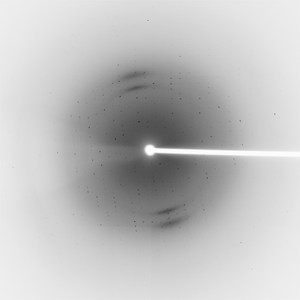

Dataset 46035_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2007-02-04 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

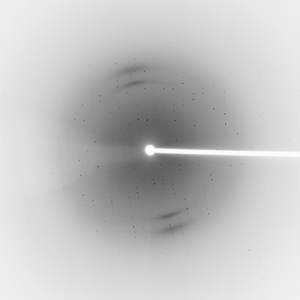

Dataset 46035_2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
325.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
286.0 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2007-02-05 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
