Diffraction project datasets FJ9519A_2oh3
Project details
| Title |

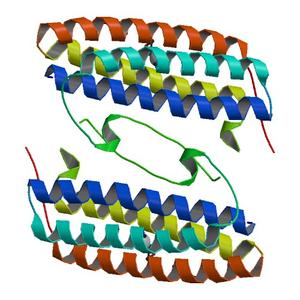

Crystal structure of COG1633: Uncharacterized conserved protein (ZP_00055496.1) from Magnetospirillum magnetotacticum MS-1 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.24 |
| Unit cell edges [Å] |
64.36 x
75.28 x
89.79
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

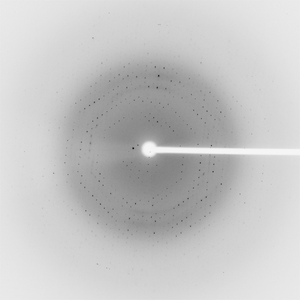

Dataset 36580_1_E1_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.97944 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

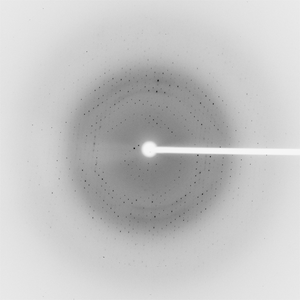

Dataset 36580_1_E2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

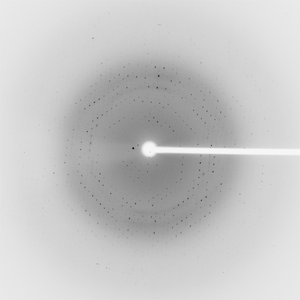

Dataset 36580_2_###.mccd details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
55.0 |
| Wavelength [Å] |
0.97913 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
