Diffraction project datasets FJ9319A_2qec

  • Method: MAD, Molecular Replacement
  • Resolution: 1.9 Å
  • Space group: P 65 2 2
Download all images (4.5 GB)

PDB website for 2QEC

doi:10.18430/M32QEC

Project details

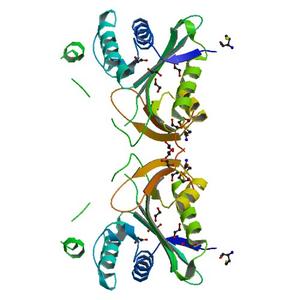

Title Crystal structure of histone acetyltransferase HPA2 and related acetyltransferase (NP_600742.1) from Corynebacterium glutamicum ATCC 13032 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 79.07 x 79.07 x 181.26
Unit cell angles [°] 90.0, 90.0, 120.0

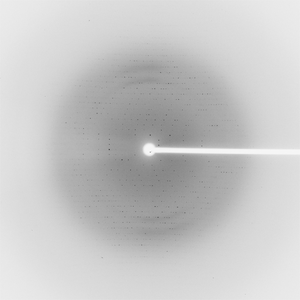

Dataset 38674_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 20.0
Wavelength [Å] 0.97917
Experiment Date 2007-01-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

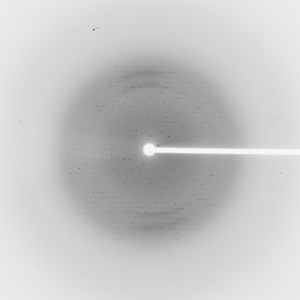

Dataset 38674_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 20.0
Wavelength [Å] 0.91837
Experiment Date 2007-01-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

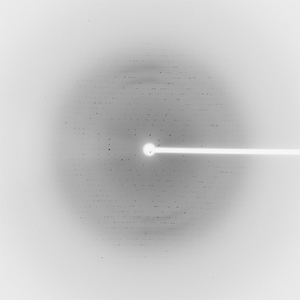

Dataset 38674_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Phi [°] 20.0
Wavelength [Å] 0.97886
Experiment Date 2007-01-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
