Diffraction project datasets FJ9230A_2o7t

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 32 2 1
Download all images (3.1 GB)

PDB website for 2O7T

doi:10.18430/M32O7T

Project details

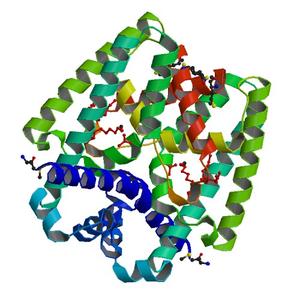

Title Crystal structure of a tetr family transcriptional regulator (ncgl1578, cgl1640) from corynebacterium glutamicum at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 51.20 x 51.20 x 129.63
Unit cell angles [°] 90.0, 90.0, 120.0

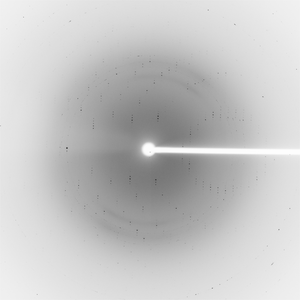

Dataset 37235_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 17.0
Wavelength [Å] 0.97975
Experiment Date 2006-11-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

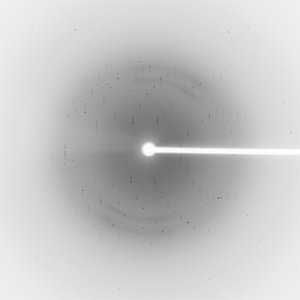

Dataset 37235_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 17.0
Wavelength [Å] 0.92522
Experiment Date 2006-11-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
