Diffraction project datasets FJ9110A_3dde

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 21 21 2
Download all images (3.0 GB)

PDB website for 3DDE
PDB validation report for 3DDE

doi:10.18430/M33DDE

Project details

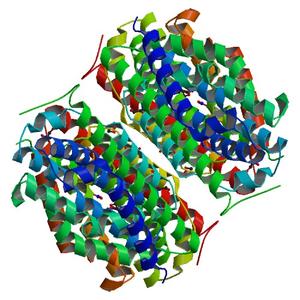

Title Crystal structure of a domain of unknown function with a heme oxygenase-like fold (sden_3740) from shewanella denitrificans os217 at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.25
Unit cell edges [Å] 92.81 x 66.00 x 84.38
Unit cell angles [°] 90.0, 90.0, 90.0

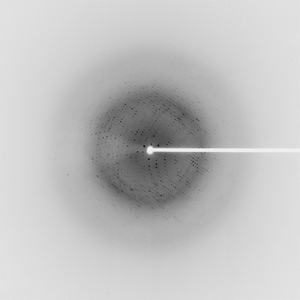

Dataset 81567_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 0.97932
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

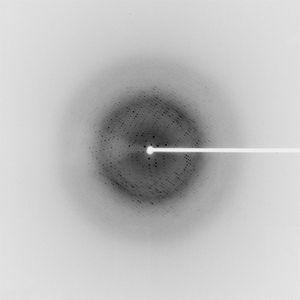

Dataset 81567_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 0.91162
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

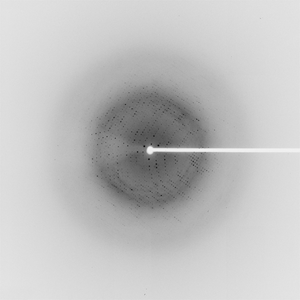

Dataset 81567_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 317.0
Wavelength [Å] 0.97918
Experiment Date 2008-03-16
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
