Diffraction project datasets FJ8891A_2obp

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 63 2 2
Download all images (4.9 GB)

PDB website for 2OBP
PDB validation report for 2OBP

doi:10.18430/M32OBP

Project details

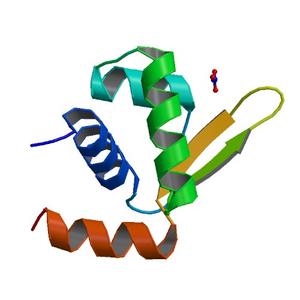

Title Crystal structure of a putative dna-binding protein (reut_b4095) from ralstonia eutropha jmp134 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 76.58 x 76.58 x 137.86
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset 36656_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.97932
Experiment Date 2006-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

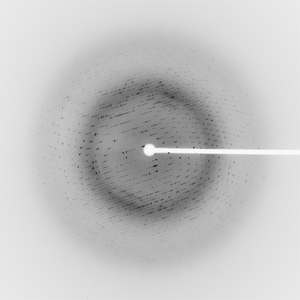

Dataset 36656_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.91837
Experiment Date 2006-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

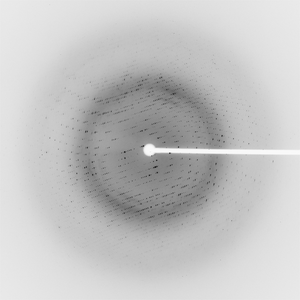

Dataset 36656_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.97910
Experiment Date 2006-12-03
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
