Diffraction project datasets FJ8839A_2pn2

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: C 2 2 21
Download all images (4.0 GB)

PDB website for 2PN2

doi:10.18430/M32PN2

Project details

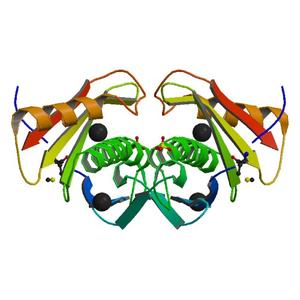

Title CRYSTAL STRUCTURE OF A PUTATIVE OSMOTIC STRESS INDUCED AND DETOXIFICATION RESPONSE PROTEIN (PSYC_0566) FROM PSYCHROBACTER ARCTICUS 273-4 AT 2.15 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 47.24 x 57.39 x 103.40
Unit cell angles [°] 90.0, 90.0, 90.0

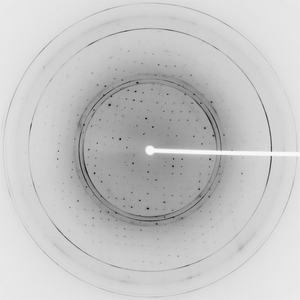

Dataset 46896_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 260.0
Wavelength [Å] 0.97939
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

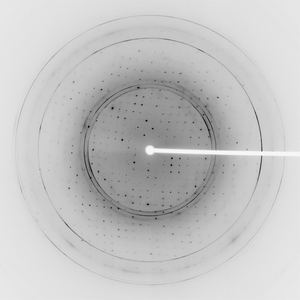

Dataset 46896_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 260.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 46896_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 260.0
Wavelength [Å] 0.97922
Experiment Date 2007-02-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
