Diffraction project datasets FJ8835A_2onf
Project details
| Title |

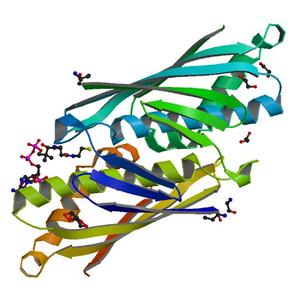

Crystal structure of a putative osmotically inducible protein c (ta0195) from thermoplasma acidophilum at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.20 |
| Unit cell edges [Å] |
47.07 x
68.55 x
48.67
|
| Unit cell angles [°] |
90.0,
98.3,
90.0
|

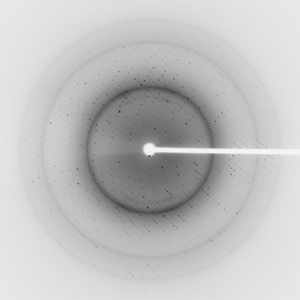

Dataset 38657_1_E1_###.mccd details
| Number of frames |
155 (1 - 155) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.97944 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

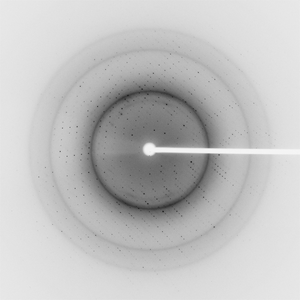

Dataset 38657_1_E2_###.mccd details
| Number of frames |
155 (1 - 155) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

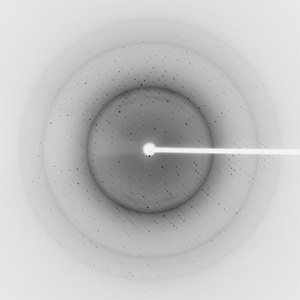

Dataset 38657_2_###.mccd details
| Number of frames |
155 (1 - 155) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
2.0 |
| Wavelength [Å] |
0.97910 |
| Experiment Date |
2006-12-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
