Diffraction project datasets FJ8832A_2qeu

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: P 61 2 2
Download all images (3.1 GB)

PDB website for 2QEU
PDB validation report for 2QEU

doi:10.18430/M32QEU

Project details

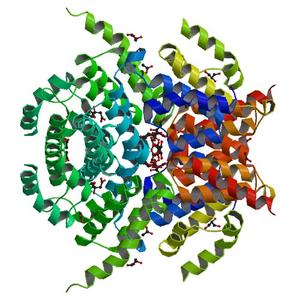

Title Crystal structure of putative carboxymuconolactone decarboxylase (YP_555818.1) from Burkholderia xenovorans LB400 at 1.65 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 71.17 x 71.17 x 325.50
Unit cell angles [°] 90.0, 90.0, 120.0

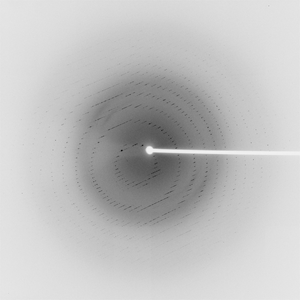

Dataset 52025_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.97920
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

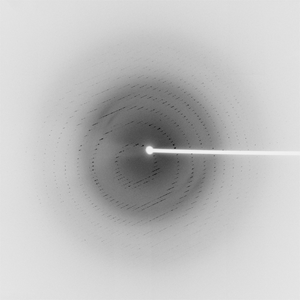

Dataset 52025_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

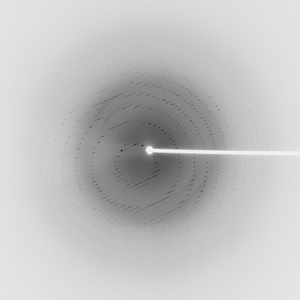

Dataset 52025_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 0.97903
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
