Diffraction project datasets FJ8786A_2oc5

  • Method: MAD
  • Resolution: 1.68 Å
  • Space group: P 43 21 2
Download all images (4.3 GB)

PDB website for 2OC5
PDB validation report for 2OC5

doi:10.18430/M32OC5

Project details

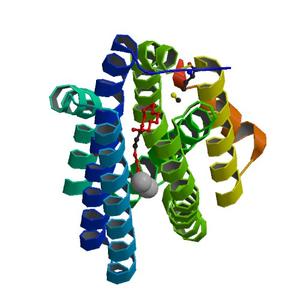

Title Crystal structure of a ferritin-like protein (pmt1231) from prochlorococcus marinus str. mit 9313 at 1.68 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 77.35 x 77.35 x 116.89
Unit cell angles [°] 90.0, 90.0, 90.0

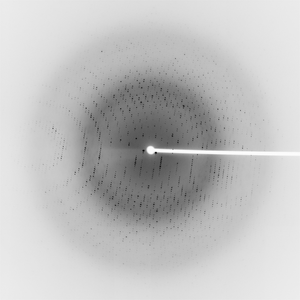

Dataset 37043_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 221.0
Wavelength [Å] 0.97929
Experiment Date 2006-12-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

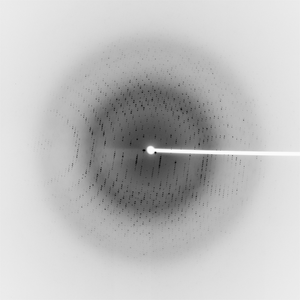

Dataset 37043_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 221.0
Wavelength [Å] 0.91162
Experiment Date 2006-12-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

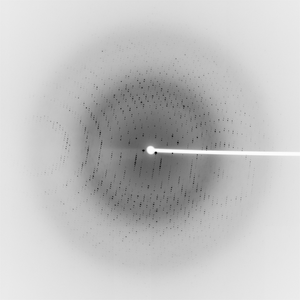

Dataset 37043_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 221.0
Wavelength [Å] 0.97915
Experiment Date 2006-12-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
