Diffraction project datasets FJ8586A_2ozg

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: H 3 2
Download all images (2.4 GB)

PDB website for 2OZG

doi:10.18430/M32OZG

Project details

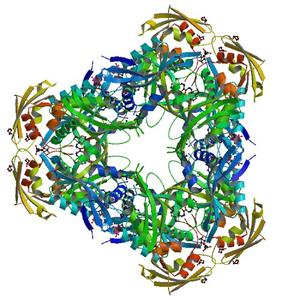

Title Crystal structure of GCN5-related N-acetyltransferase (YP_325469.1) from Anabaena variabilis ATCC 29413 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.22
Unit cell edges [Å] 174.96 x 174.96 x 71.89
Unit cell angles [°] 90.0, 90.0, 120.0

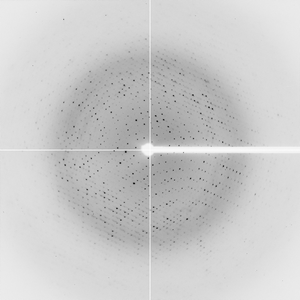

Dataset 36658_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 190.0
Oscillation width [°] 0.50
Phi [°] 291.0
Wavelength [Å] 0.97931
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

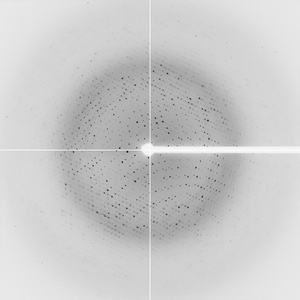

Dataset 36658_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 190.0
Oscillation width [°] 0.50
Phi [°] 291.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

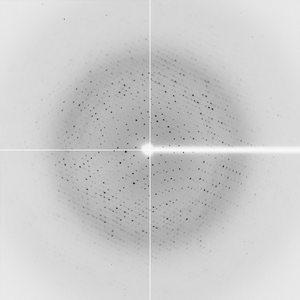

Dataset 36658_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 190.0
Oscillation width [°] 0.50
Phi [°] 291.0
Wavelength [Å] 0.97884
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

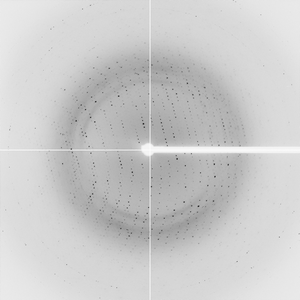

Dataset 36658_###.img details

Number of frames 46 (181 - 226)
Distance [mm] 190.0
Oscillation width [°] 0.25
Phi [°] 21.0
Wavelength [Å] 0.97884
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
