Diffraction project datasets FJ6376A_3npg

  • Method: MR
  • Resolution: 2.7 Å
  • Space group: P 21 21 21
Download all images (5.2 GB)

PDB website for 3NPG
PDB validation report for 3NPG

doi:10.18430/M33NPG

Project details

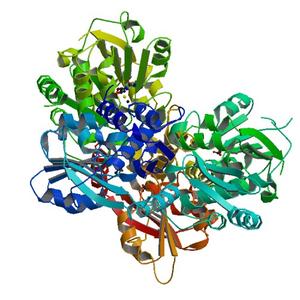

Title Crystal structure of a protein with unknown function from DUF364 family (PH1506) from PYROCOCCUS HORIKOSHII at 2.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 74.54 x 95.18 x 159.10
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 47812_1_E1_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.97910
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

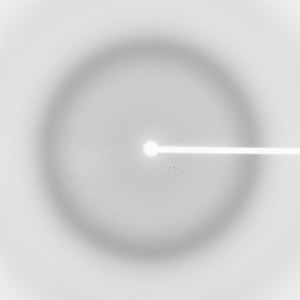

Dataset 47812_1_E2_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.91162
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

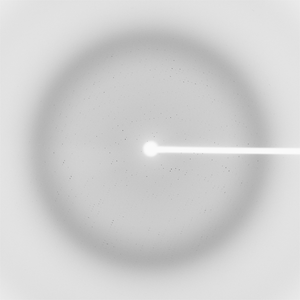

Dataset 47812_2_###.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.97876
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
