Diffraction project datasets FJ5490A_2ouw
Project details
| Title |

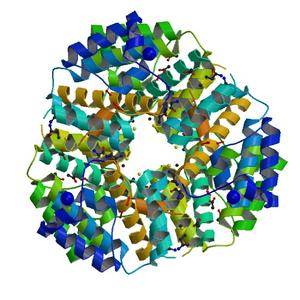

Crystal structure of Alkylhydroperoxidase AhpD core (YP_425393.1) from Rhodospirillum rubrum ATCC 11170 at 1.95 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.23 |
| Unit cell edges [Å] |
62.68 x
62.68 x
216.71
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

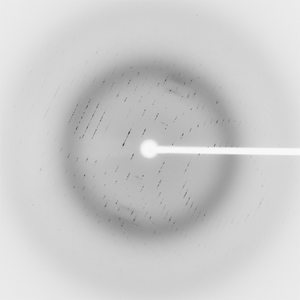

Dataset 38495_1_E1_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
19.0 |
| Wavelength [Å] |
0.97925 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

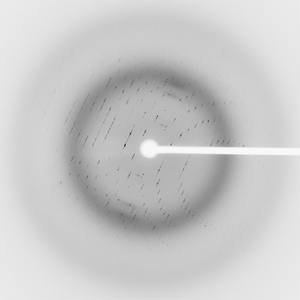

Dataset 38495_1_E2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
19.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

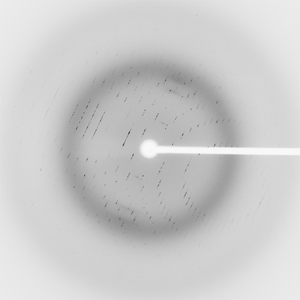

Dataset 38495_2_###.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.75 |
| Phi [°] |
19.0 |
| Wavelength [Å] |
0.97895 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

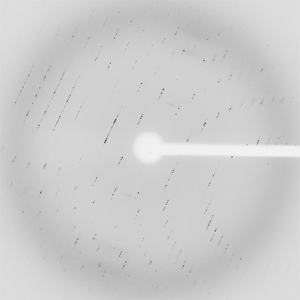

Dataset 38495_3_###.mccd details
| Number of frames |
150 (1 - 150) |
| Distance [mm] |
500.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
19.0 |
| Wavelength [Å] |
0.97895 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
