Diffraction project datasets FJ1648A_2ogi
Project details
| Title |

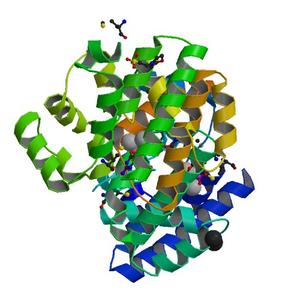

Crystal structure of a putative metal dependent phosphohydrolase (sag1661) from streptococcus agalactiae serogroup v at 1.85 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.23 |
| Unit cell edges [Å] |
65.84 x
52.53 x
70.02
|
| Unit cell angles [°] |
90.0,
114.3,
90.0
|
Dataset 37983_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
30.0 |
| Wavelength [Å] |
0.97935 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

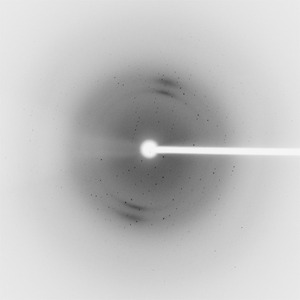

Dataset 37983_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
30.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

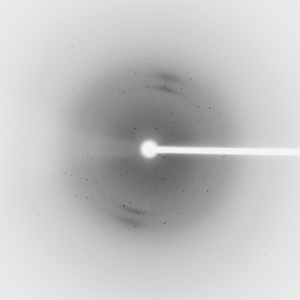

Dataset 37983_2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
30.0 |
| Wavelength [Å] |
0.97864 |
| Experiment Date |
2006-12-17 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
