Diffraction project datasets FH7700A_2hq9

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 21 21 21
Download all images (3.1 GB)

PDB website for 2HQ9
PDB validation report for 2HQ9

doi:10.18430/M32HQ9

Project details

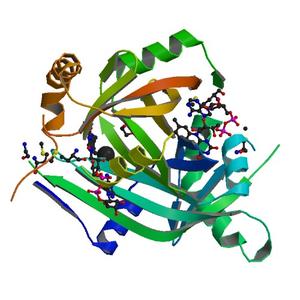

Title Crystal structure of a fad-binding protein (mll6688) from mesorhizobium loti at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.24
Unit cell edges [Å] 47.85 x 74.89 x 84.63
Unit cell angles [°] 90.0, 90.0, 90.0

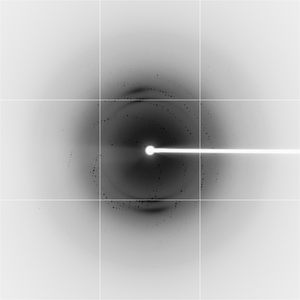

Dataset 28056_17_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 310.0
Wavelength [Å] 0.97920
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 28056_17_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 310.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 28056_18_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 310.0
Wavelength [Å] 0.97883
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
