Diffraction project datasets FH7684A_2huj
- Method: MAD
- Resolution: 1.74 Å
- Space group: P 63 2 2
PDB website for 2HUJ
doi:10.18430/M32HUJ
Project details

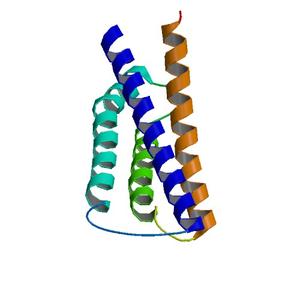

| Title | Crystal structure of a protein of uknown function (NP_471338.1) from Listeria innocua at 1.74 A resolution |
| Authors | Kozbial, P., Xu, Q., Chiu, H.J., McMullan, D., Krishna, S.S., Miller, M.D., Abdubek, P., Acosta, C., Astakhova, T., Axelrod, H.L., Carlton, D., Clayton, T., Deller, M., Duan, L., Elias, Y., Elsliger, M.A., Feuerhelm, J., Grzechnik, S.K., Hale, J., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Kumar, A., Marciano, D., Morse, A.T., Murphy, K.D., Nigoghossian, E., Okach, L., Oommachen, S., Reyes, R., Rife, C.L., Spraggon, G., Trout, C.V., van den Bedem, H., Weekes, D., White, A., Wolf, G., Zubieta, C., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 100.11 x 100.11 x 66.92 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

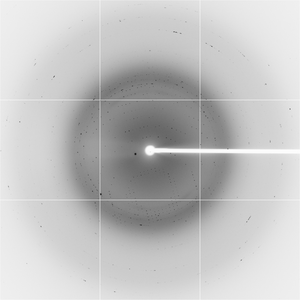

Dataset 28143_17_E1_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

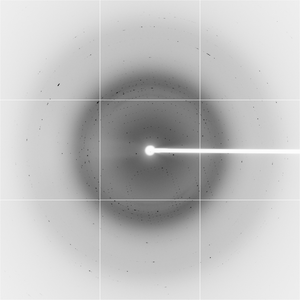

Dataset 28143_17_E2_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

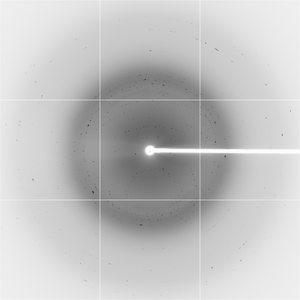

Dataset 28143_18_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 110.0 |
| Wavelength [Å] | 0.97898 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
