Diffraction project datasets FH7626A_3ch0

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 21 21 21
Download all images (3.5 GB)

PDB website for 3CH0
PDB validation report for 3CH0

doi:10.18430/M33CH0

Project details

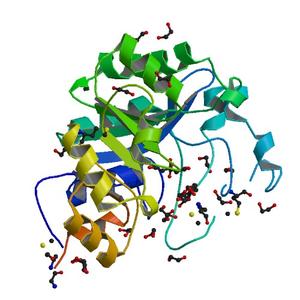

Title Crystal structure of glycerophosphoryl diester phosphodiesterase (YP_677622.1) from Cytophaga hutchinsonii ATCC 33406 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 49.53 x 61.21 x 113.70
Unit cell angles [°] 90.0, 90.0, 90.0

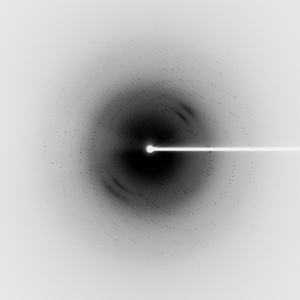

Dataset 77321_1_E1_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 0.97910
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 77321_1_E2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 0.91837
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

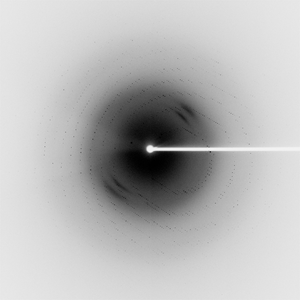

Dataset 77321_2_###.mccd details

Number of frames 95 (1 - 95)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 60.0
Wavelength [Å] 0.97848
Experiment Date 2008-02-04
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
