Diffraction project datasets FH7614A_2ig6

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (3.0 GB)

PDB website for 2IG6
PDB validation report for 2IG6

doi:10.18430/M32IG6

Project details

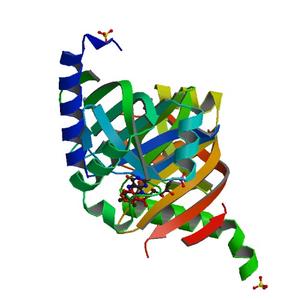

Title Crystal structure of a nimc/nima family protein (ca_c2569) from clostridium acetobutylicum at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 52.43 x 65.31 x 108.79
Unit cell angles [°] 90.0, 90.0, 90.0

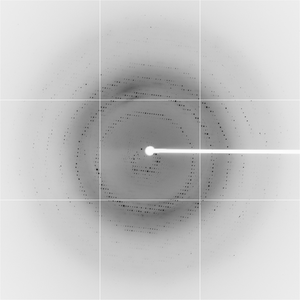

Dataset 29733_4_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 323.0
Wavelength [Å] 0.97925
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

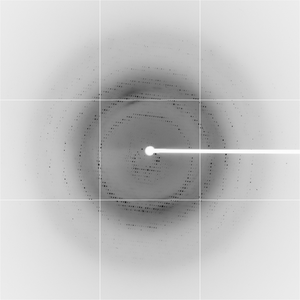

Dataset 29733_4_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 323.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

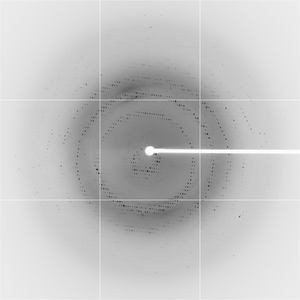

Dataset 29733_4_E3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 323.0
Wavelength [Å] 0.97898
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
