Diffraction project datasets FH7599A_2pnk

  • Method: Molecular Replacement, MAD
  • Resolution: 2.0 Å
  • Space group: C 1 2 1
Download all images (12.1 GB)

PDB website for 2PNK

doi:10.18430/M32PNK

Project details

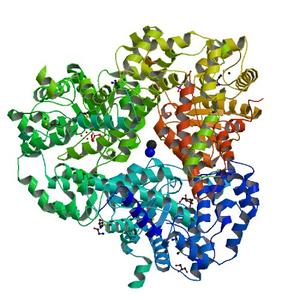

Title CRYSTAL STRUCTURE OF AN URONATE ISOMERASE (BH0493) FROM BACILLUS HALODURANS C-125 AT 2.00 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 273.72 x 158.56 x 181.24
Unit cell angles [°] 90.0, 116.0, 90.0

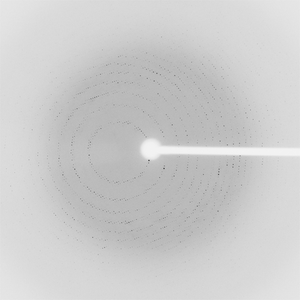

Dataset 44283_1_E1_###.mccd details

Number of frames 540 (1 - 540)
Distance [mm] 350.0
Oscillation width [°] 0.25
Phi [°] 125.0
Wavelength [Å] 0.97935
Experiment Date 2007-02-24
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

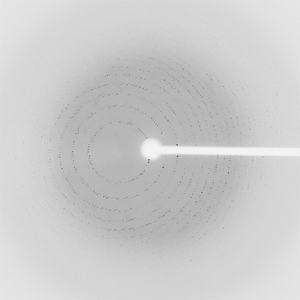

Dataset 44283_1_E2_###.mccd details

Number of frames 540 (1 - 540)
Distance [mm] 350.0
Oscillation width [°] 0.25
Phi [°] 125.0
Wavelength [Å] 0.91837
Experiment Date 2007-02-24
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
