Diffraction project datasets FH7577A_2hsb

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 43 21 2
Download all images (4.1 GB)

PDB website for 2HSB
PDB validation report for 2HSB

doi:10.18430/M32HSB

Project details

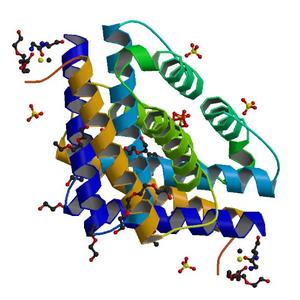

Title Crystal structure of a hepn domain containing protein (af_0298) from archaeoglobus fulgidus at 1.95 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 60.67 x 60.67 x 80.41
Unit cell angles [°] 90.0, 90.0, 90.0

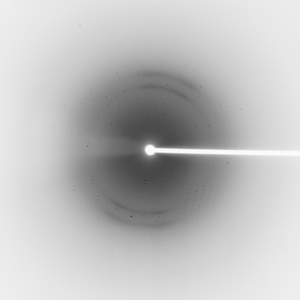

Dataset 27221_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 300.0
Wavelength [Å] 0.97936
Experiment Date 2006-06-17
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

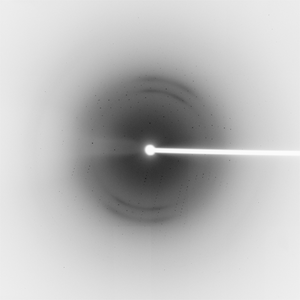

Dataset 27221_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 300.0
Wavelength [Å] 0.91837
Experiment Date 2006-06-17
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

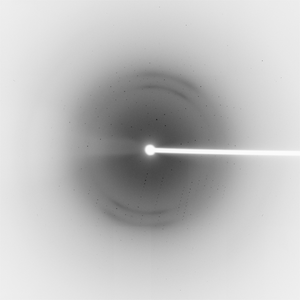

Dataset 27221_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 300.0
Wavelength [Å] 0.97918
Experiment Date 2006-06-17
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
