Diffraction project datasets FG7482A_3dmb

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 32 2 1
Download all images (3.6 GB)

PDB website for 3DMB
PDB validation report for 3DMB

doi:10.18430/M33DMB

Project details

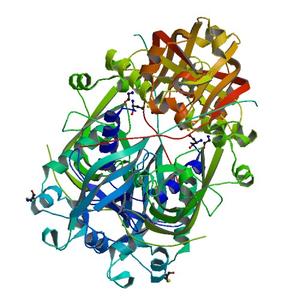

Title Crystal structure of a putative general stress family protein (xcc2264) from xanthomonas campestris pv. campestris at 2.30 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 105.32 x 105.32 x 68.34
Unit cell angles [°] 90.0, 90.0, 120.0

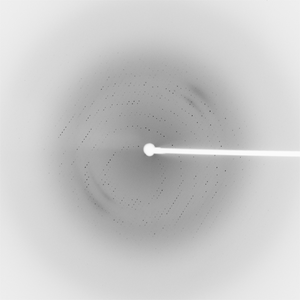

Dataset 85916_1_###.mccd details

Number of frames 60 (181 - 240)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 133.0
Wavelength [Å] 0.97862
Experiment Date 2008-05-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

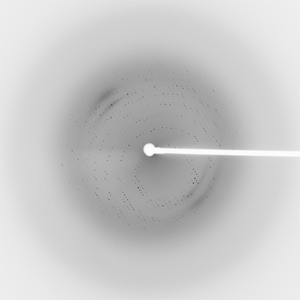

Dataset 85916_3_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 313.0
Wavelength [Å] 0.91837
Experiment Date 2008-05-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

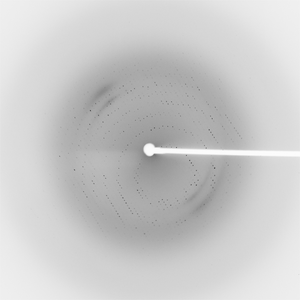

Dataset 85916_4_###.mccd details

Number of frames 60 (1 - 60)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 313.0
Wavelength [Å] 0.97939
Experiment Date 2008-05-16
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
