Diffraction project datasets FG7459A_2hhz

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 43 21 2
Download all images (4.4 GB)

PDB website for 2HHZ
PDB validation report for 2HHZ

doi:10.18430/M32HHZ

Project details

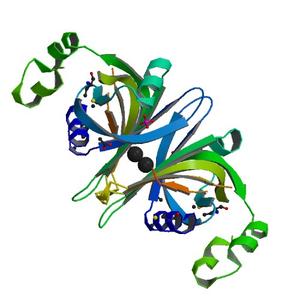

Title Crystal structure of a pyridoxamine 5'-phosphate oxidase-related protein (ssuidraft_2804) from streptococcus suis 89/1591 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 71.00 x 71.00 x 58.40
Unit cell angles [°] 90.0, 90.0, 90.0

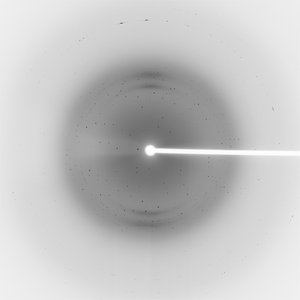

Dataset 25662_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 330.0
Wavelength [Å] 0.97934
Experiment Date 2006-06-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

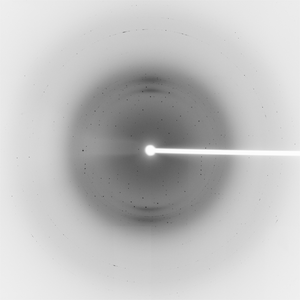

Dataset 25662_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 330.0
Wavelength [Å] 0.91837
Experiment Date 2006-06-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

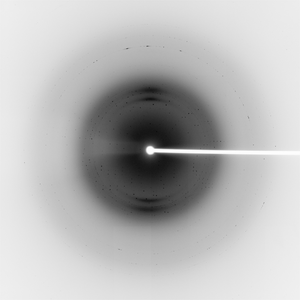

Dataset 25662_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 330.0
Wavelength [Å] 0.97915
Experiment Date 2006-06-04
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
