Diffraction project datasets FG7410A_3bf4

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 43 21 2
Download all images (1.2 GB)

PDB website for 3BF4
PDB validation report for 3BF4

doi:10.18430/M33BF4

Project details

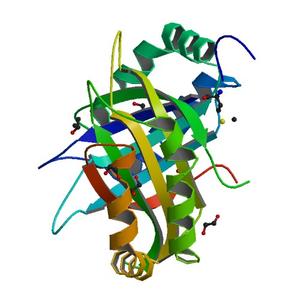

Title Crystal structure of an ethd-like protein (reut_b5694) from ralstonia eutropha jmp134 at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 74.54 x 74.54 x 98.87
Unit cell angles [°] 90.0, 90.0, 90.0

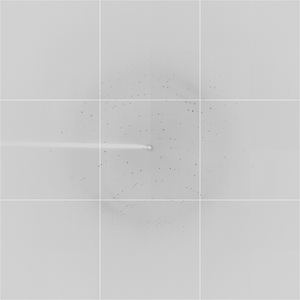

Dataset 65654_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] -74.0
Wavelength [Å] 0.97950
Experiment Date 2007-11-01
Equipment 8.2.1 at ALS (Advanced Light Source)

Dataset 65654_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] -74.0
Wavelength [Å] 0.91840
Experiment Date 2007-11-01
Equipment 8.2.1 at ALS (Advanced Light Source)

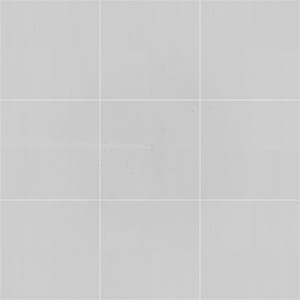

Dataset 65654_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] -74.0
Wavelength [Å] 0.97960
Experiment Date 2007-11-01
Equipment 8.2.1 at ALS (Advanced Light Source)
