Diffraction project datasets FG7348A_2hdo
Project details
| Title |

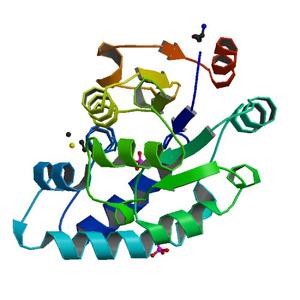

Crystal structure of putative phosphoglycolate phosphatase (np_784602.1) from Lactobacillus plantarum at 1.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.21 |
| Unit cell edges [Å] |
86.89 x
86.89 x
47.19
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

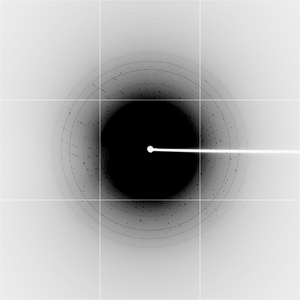

Dataset 25011_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
280.0 |
| Wavelength [Å] |
0.97922 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

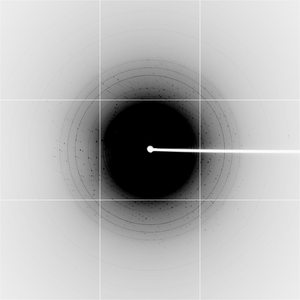

Dataset 25011_1_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
180.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
280.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

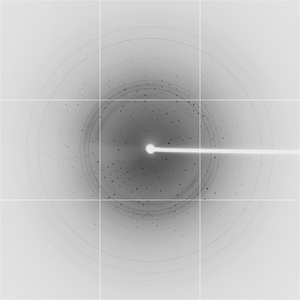

Dataset 25011_2_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
280.0 |
| Wavelength [Å] |
0.97922 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

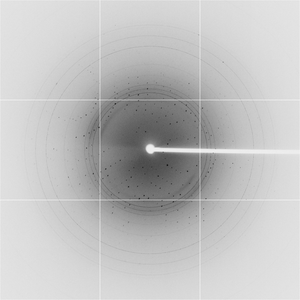

Dataset 25011_2_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
280.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

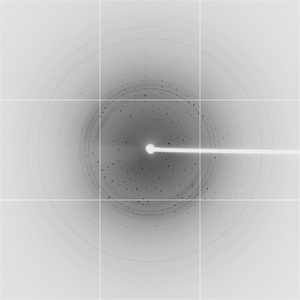

Dataset 25011_3_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
280.0 |
| Wavelength [Å] |
0.97895 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
