Diffraction project datasets FG7303A_2ozj

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: C 2 2 21
Download all images (12.7 GB)

PDB website for 2OZJ

doi:10.18430/M32OZJ

Project details

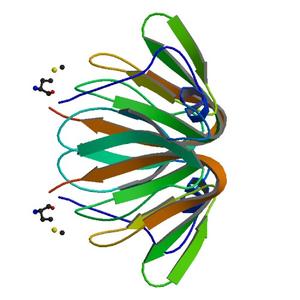

Title CRYSTAL STRUCTURE OF A CUPIN SUPERFAMILY PROTEIN (DSY2733) FROM DESULFITOBACTERIUM HAFNIENSE DCB-2 AT 1.60 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 40.93 x 69.79 x 150.52
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 39863_1_E1_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 230.0
Oscillation width [°] 0.50
Phi [°] 15.0
Wavelength [Å] 0.97941
Experiment Date 2007-01-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

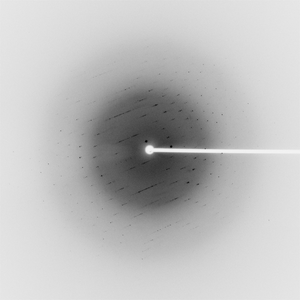

Dataset 39863_1_E2_###.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 230.0
Oscillation width [°] 0.50
Phi [°] 15.0
Wavelength [Å] 0.91837
Experiment Date 2007-01-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

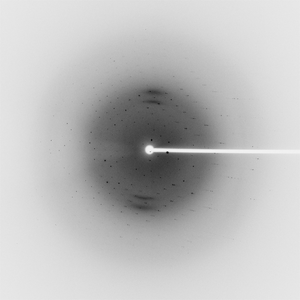

Dataset 39863_2_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 0.50
Phi [°] 135.0
Wavelength [Å] 0.97941
Experiment Date 2007-01-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

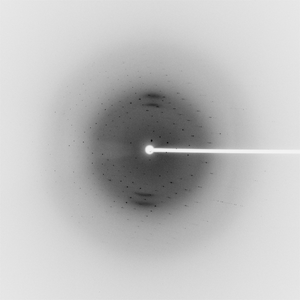

Dataset 39863_2_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 230.0
Oscillation width [°] 0.50
Phi [°] 135.0
Wavelength [Å] 0.91837
Experiment Date 2007-01-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

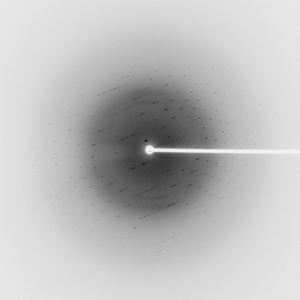

Dataset 39863_3_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 230.0
Oscillation width [°] 0.50
Phi [°] 15.0
Wavelength [Å] 0.97917
Experiment Date 2007-01-06
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
