Diffraction project datasets FG7292A_2hcf

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 21
Download all images (6.5 GB)

PDB website for 2HCF
PDB validation report for 2HCF

doi:10.18430/M32HCF

Project details

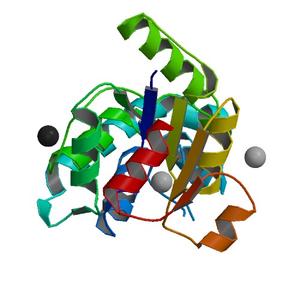

Title Crystal structure of hydrolase haloacid dehalogenase-like family (np_662590.1) from Chlorobium tepidum TLS at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.25
Unit cell edges [Å] 37.75 x 71.59 x 83.20
Unit cell angles [°] 90.0, 90.0, 90.0

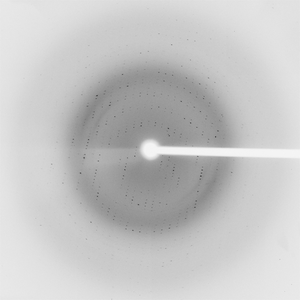

Dataset 26303_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.97915
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 26303_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.91837
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 26303_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 170.0
Wavelength [Å] 0.97929
Experiment Date 2006-06-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
