Diffraction project datasets FG7273A_2p11

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: C 1 2 1
Download all images (7.0 GB)

PDB website for 2P11
PDB validation report for 2P11

doi:10.18430/M32P11

Project details

Title CRYSTAL STRUCTURE OF A PUTATIVE HALOACID DEHALOGENASE-LIKE HYDROLASE (BXE_B1342) FROM BURKHOLDERIA XENOVORANS LB400 AT 2.20 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 80.39 x 68.08 x 88.24
Unit cell angles [°] 90.0, 112.2, 90.0

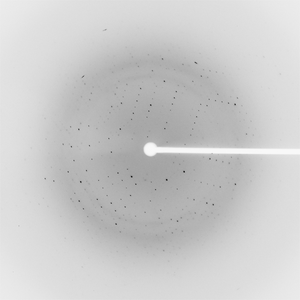

Dataset 34560_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.97925
Experiment Date 2007-02-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

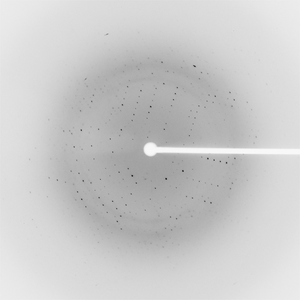

Dataset 34560_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.94642
Experiment Date 2007-02-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

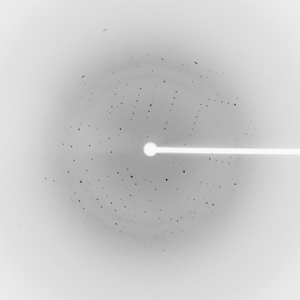

Dataset 34560_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.97902
Experiment Date 2007-02-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
